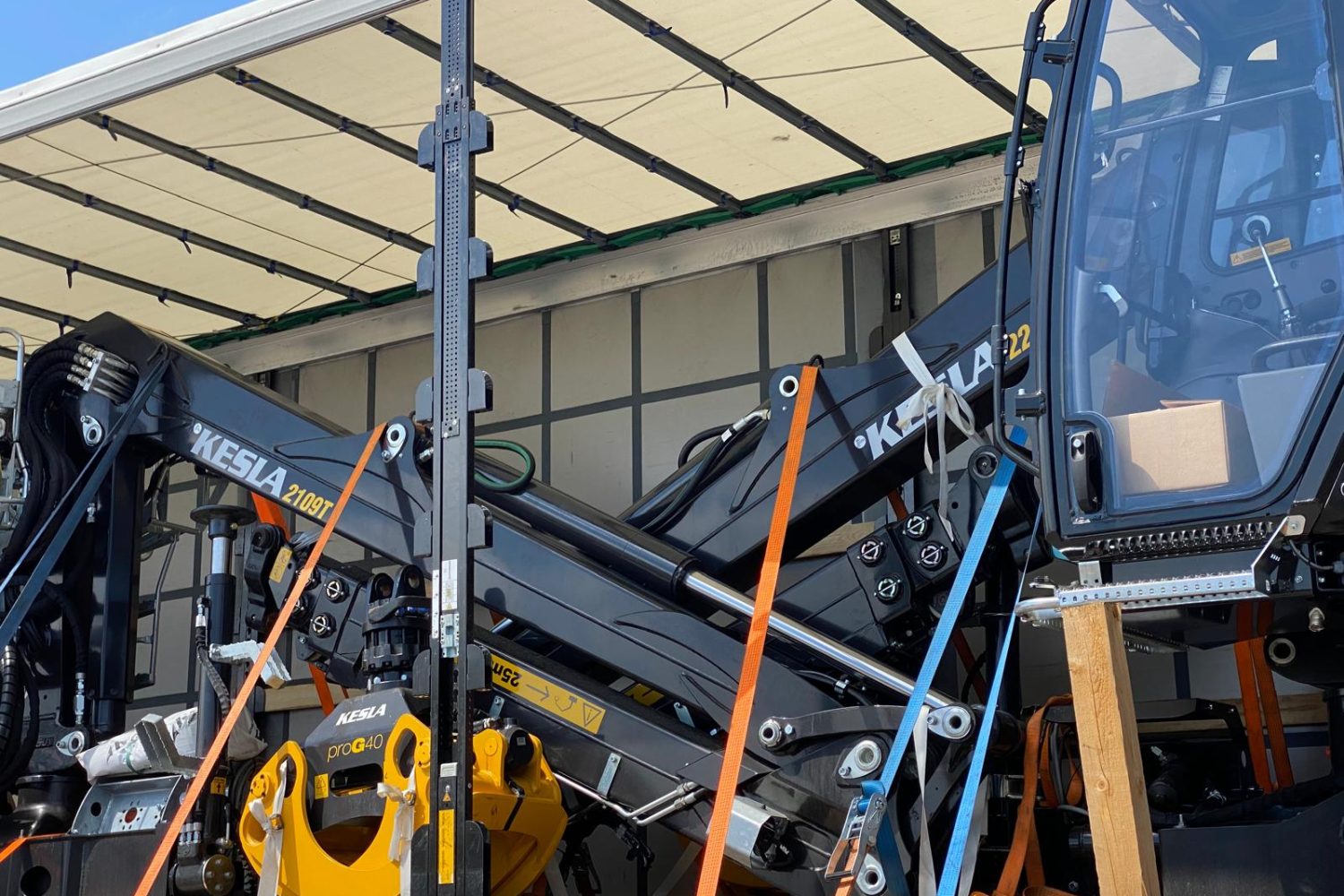

KESLA 2209sT with Vision STD cabin | KESLA 2209 Vision STD -hytillä

Kesla’s cranes, trailers, harvester heads, and biomass chippers were an early addition to Oakleaf Forestry’s product portfolio and were welcomed with open arms, given the Finnish manufacturer’s reputation for well-made, well-supported goods.

The family-owned company; Kesla states,

‘Our innovative, high-quality products – made in Finland with decades of experience and customer understanding – meet the most demanding needs, in and outside the forest. Whatever your talent and platform, Kesla is the perfect match with our durable, user-friendly products that adapt to your exact requirements.’

Upgrades and Improvements

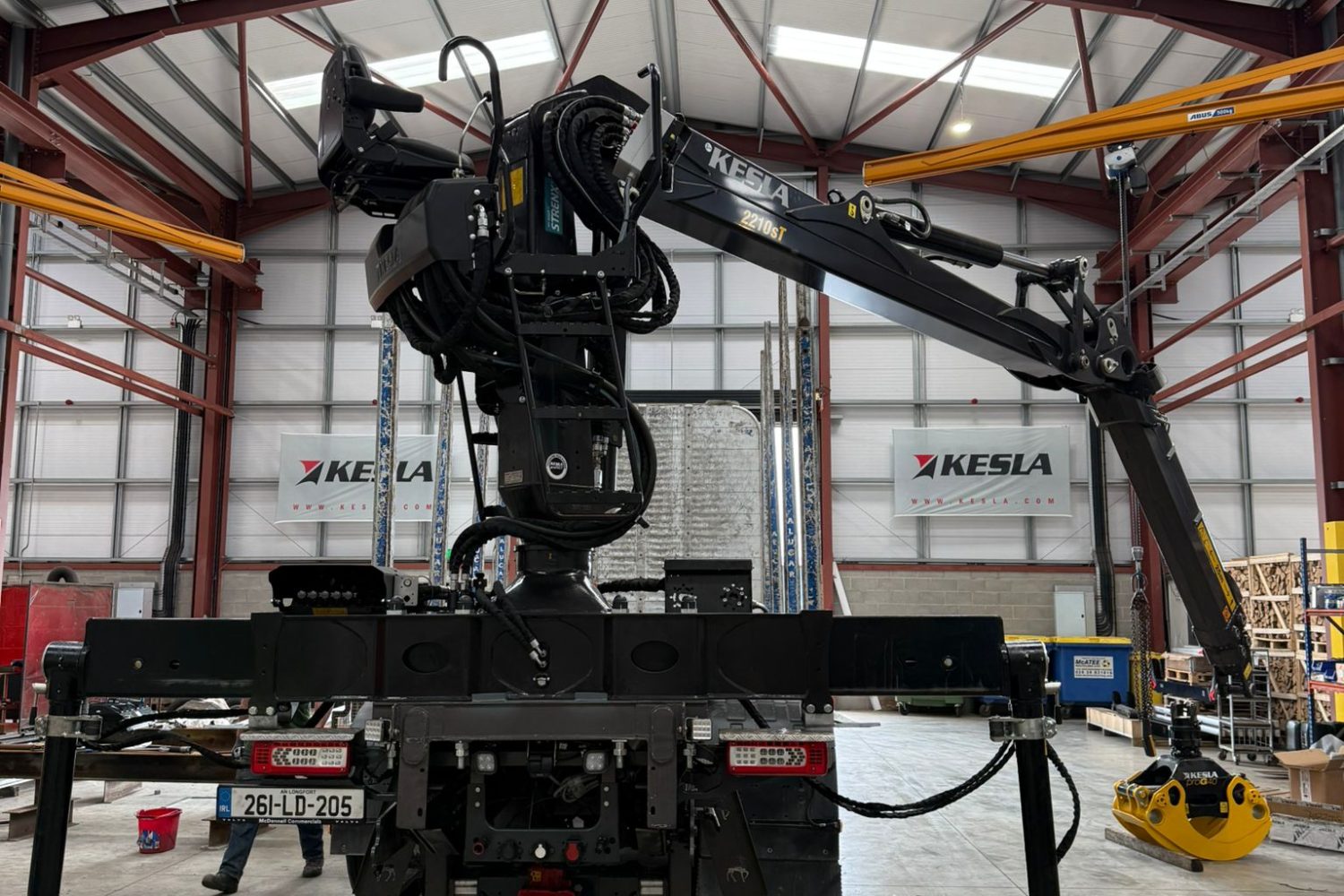

Kesla’s 9-tonne metre straight boom crane; 2209St is built specifically to withstand extremely adverse weather conditions. Weather warnings will not halt work with this crane due to the use of extremely robust hosing designed particularly for arctic conditions. A variety of different outreaches are available to suit customer needs.

The crane now has a number of extra features requested by Kesla customers, such as in-boom hydraulic hosing. In the new 22-series KESLA cranes, the hosing is placed inside the booms, also in the transfer boom minimising the risk of hose damage. Durable JIC connections and hydraulic pipes and hoses are adequately protected in the hydraulic system. KesLINK, an invention of Kesla, safeguards the hoses going to the grapple.

Extensive hydraulic lines custom-designed for these 22 series cranes allow for quick and smooth movement. The 2209St is available with a dependable single, double, or LS Parker hydraulic circuit.

With four cylinders, the crane’s slewing mechanism is stronger than before. It features highly robust pipes in the slewing system with a welded stabilised foundation of high quality. KESLA cranes can be equipped with many types of stabilizers – integrated, separate, extra wide, chipper-use, or stationery-use but the variety depends on the model.

The Steel Used

The inner and outer boom joints have a strong fork attachment and have been constructed from high-quality steel (Strenx 700 MC+).

Strenx® 700MC Plus is high-strength structural steel with advanced cold formability and impact toughness for highly demanding applications.

Strenx® 700MC Plus meets or exceeds the requirements of S700MC in EN 10149-2. It is typically used in highly demanding applications that require superior bendability, high impact toughness in cold conditions, and the ability to cut mechanically. Material is the same in the other KESLA truck cranes – Strenx MC 700+ high-quality steel surface-treated with nanoceramic KESLA proTECT handling.

The crane is finished in corrosion-resistant, double-layer powder coating (RAL9005) for excellent durability while still appearing elegant.

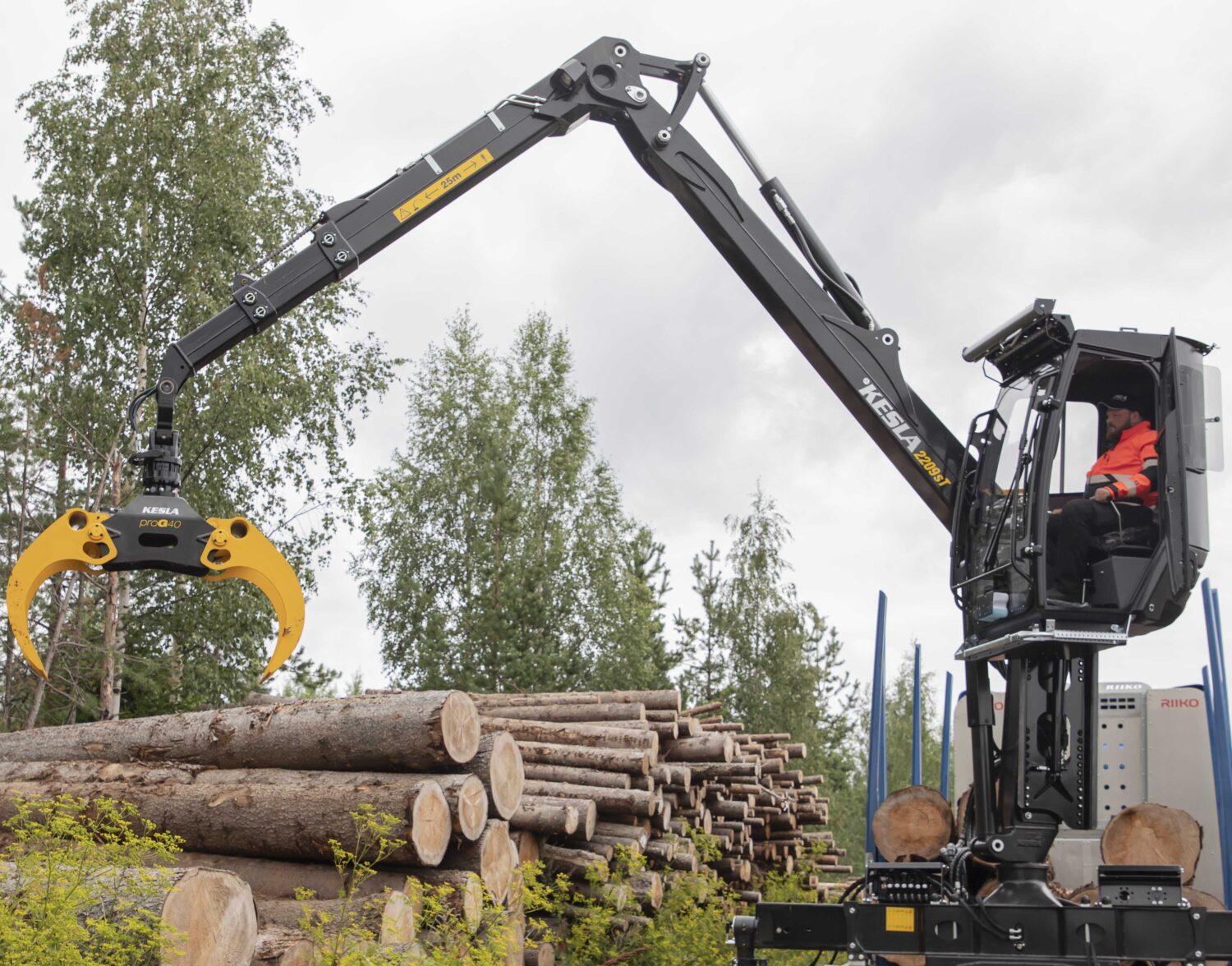

KESLA 2209sT with Vision STD cabin |

The Cab

The crane may be outfitted with a KESLA Vision Standard cabin, which is light, corrosion-free, and provides pleasant conditions with plenty of legroom. The cabin can be furnished with a Planar 2D diesel heater that is likewise appropriate for hard conditions, as well as an LED bar for better vision in the dark. The heated seats guarantee a comfortable driving experience, and weather hoods or canopies are available on request, making this crane ideal for a versatile range of weather situations.

Ready to take the next step?

Are you ready to upgrade to the latest and greatest crane for 2022 or to start your forestry journey with Kesla? Get in touch today via email at info@oakleafforestry.com or give us a call on 028 3833 0011 to become a proud member of the Kesla Squad.

The Kesla 2209st cranes are available now with excellent installation and backup services for immediate collection from Oakleaf Forestry’s Portadown branch, or for delivery across the UK and Ireland.

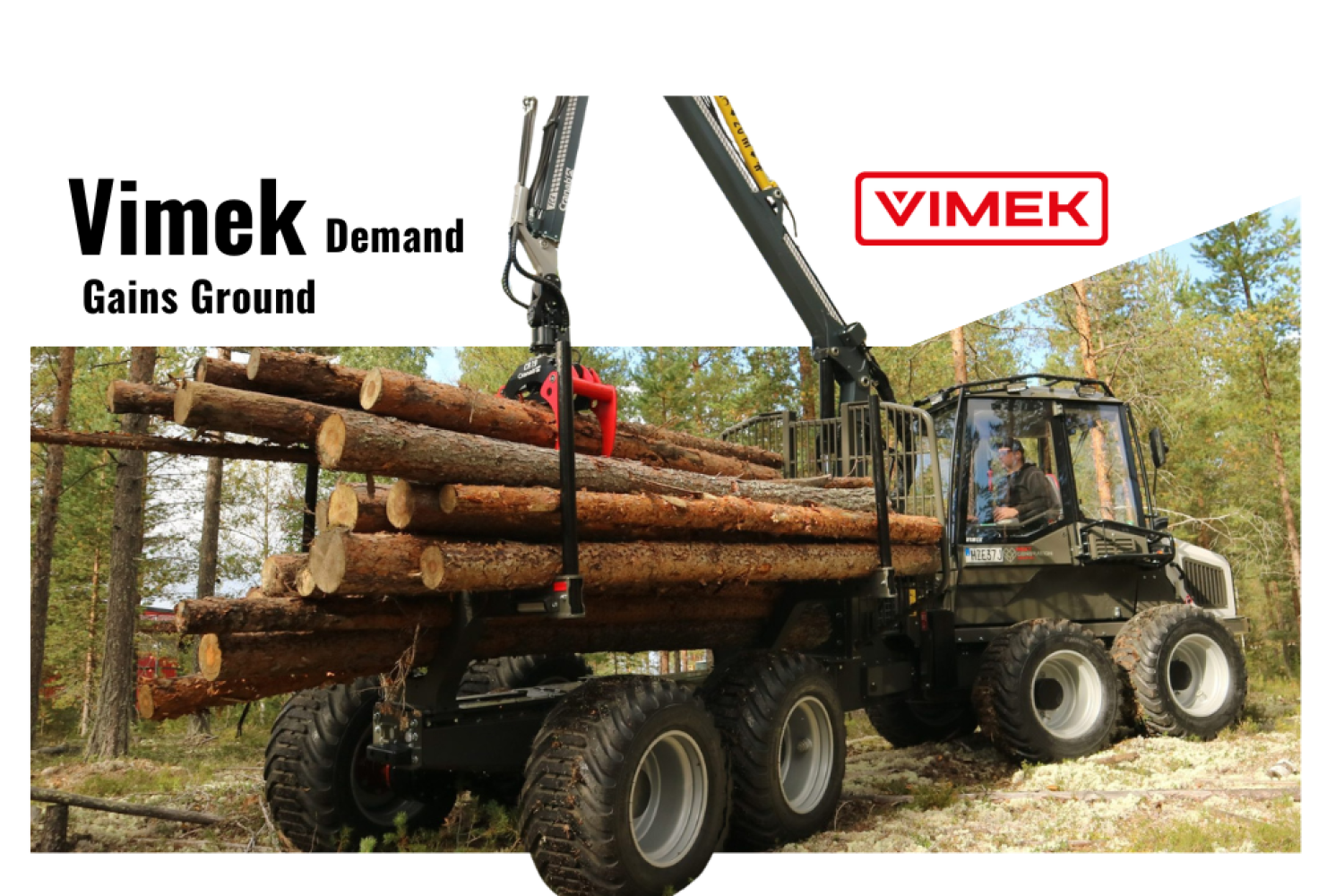

The Development of Vimek NG 870.1

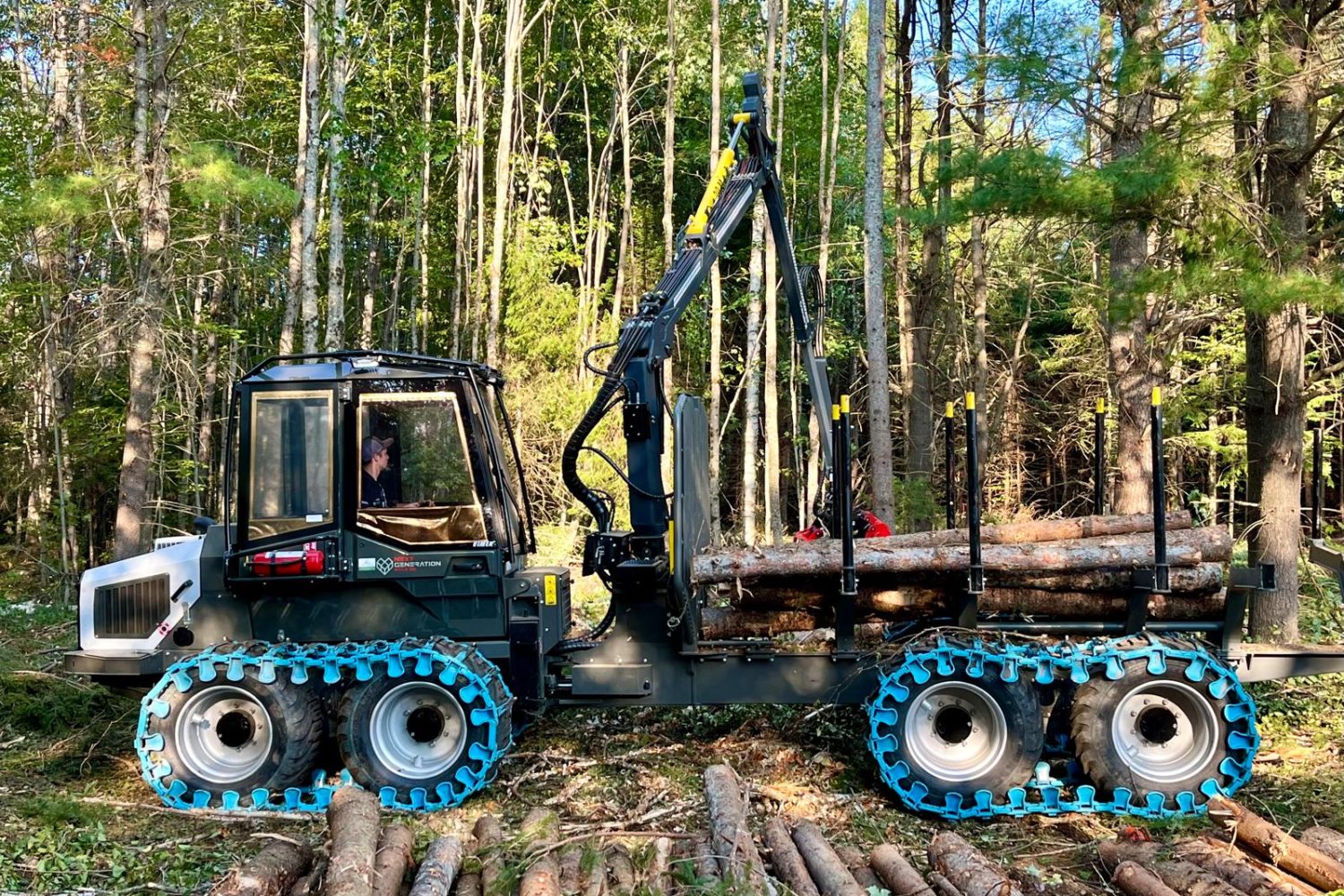

Vimek has launched their first ever eight-wheeled forwarding machine as part of their Next Generation Project. Vimek has previously mainly focused on building smaller machines for self-employed forest owners. The smaller machines have not suited contractors who need to work at a high pace with high production levels. Now, Vimek hopes that the latest and greatest; NG 870.1 will be a machine that succeeds in arousing the entrepreneurs’ interest.

‘The contractors want to maintain a high production during their driving, while the landowner wants as little damage as possible after the end of the driving. Forest owners may not want a 15-tonne machine in their forest during a first thinning. That is why we have chosen to develop our new forwarder Next Generation’, says Johan Johansson, a sales manager at Vimek in Vindeln.

ElmiaWood 2022

Vimek recently exhibited the new and improved forwarder at the world’s largest forestry fair; ElmiaWood which occurred for the first time since 2017 so evidently there was no better time or place to demonstrate.

 With a vast demonstration zone, Vimek could show off the unique capabilities of the NG 870.1 to its full potential and attract crowds to observe the extensive showcase.

Joe Litter from Oakleaf Forestry visited the demonstration site and commented on the day from ElmiaWood saying, ‘It’s been super busy. All day people have been coming to see the new machine. It’s bigger than Vimek’s previous offerings… it’s been really well received.’

Upgrades and Improvements

Featuring a brand new Cranab crane with a reach of 6.7 metres and intelligent boom control specifically designed for this forwarder. These added features allow users to have enhanced control and lead to higher levels of efficiency and precision.

It is powered by a 75hp, turbocharged Caterpillar engine and Bosch Rexroth transmission. An optimized design means that the machine can tackle terrain with ease and has a low power-loss system. Smart control programs help achieve durable and fast work despite a relatively small 55Kw engine.

The forwarder has been carefully researched and developed over a couple of years, where the development of comfort, load index, new technology, and accessibility in various stocks has received the most attention. A smaller forwarder is now able to take part in the technology of the larger machines. The Next Generation has a load index of 1: 1, which means that it loads as much as it weighs, (seven tons empty weight with seven tons load weight).

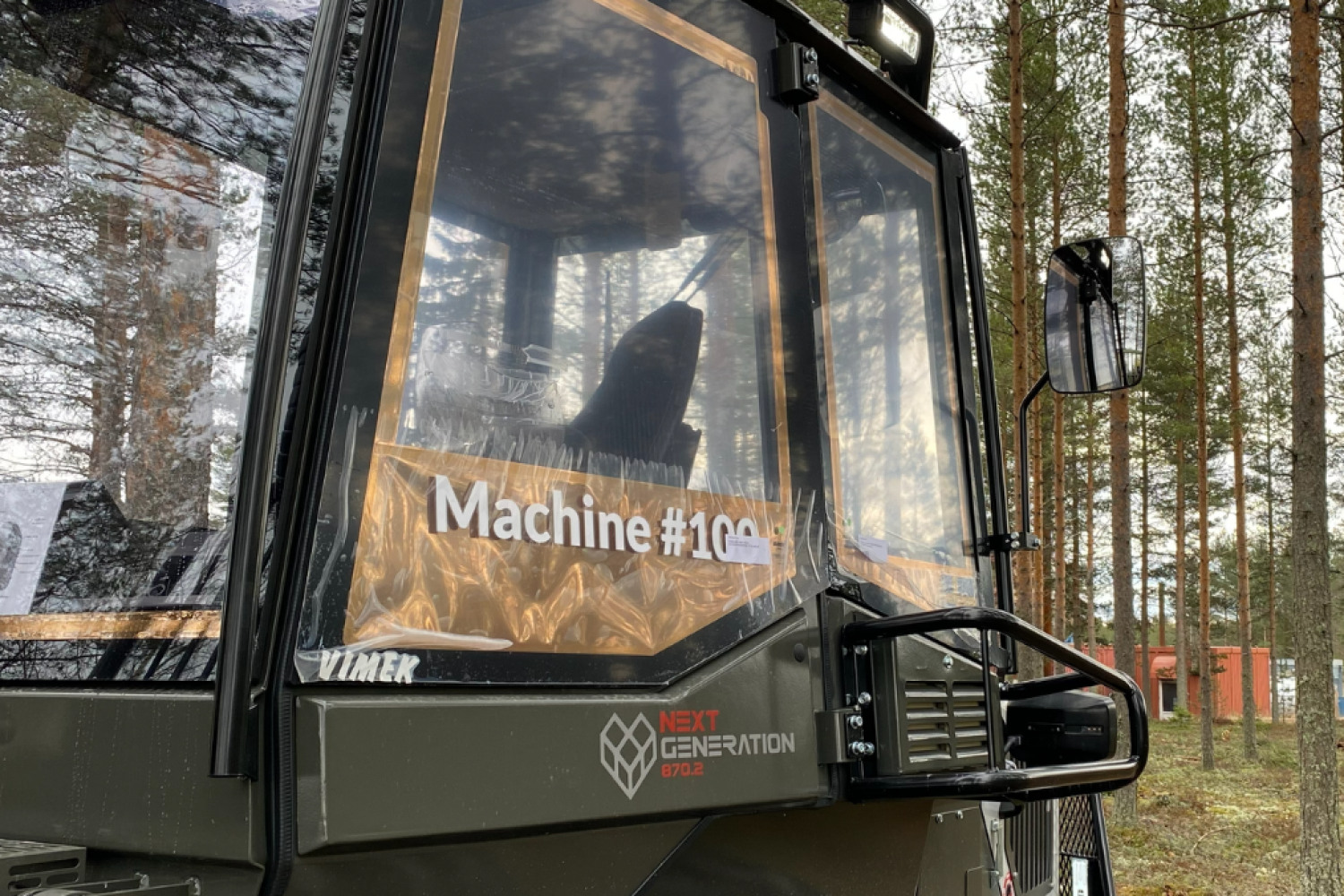

The unique steering bogie and its 7.5-tonne carrying capacity maintain a tight turning radius. Featuring a more spacious cab than Vimek’s previous machines with soundproofing, and LED lights around the outside for better visibility, enabling a pleasant driving experience for the user.

Vimek has chosen to drive with 8 wheels with four bogies to increase driver comfort. The two rear bogie pairs have been moved further back on the bed to avoid overhangs when loading long timber. If the wheel pair is moved further back, the compliance will be worse, therefore it has also been equipped with bogie steering which steers nine degrees automatically or manually to get better compliance in the stocks and be able to make the slip roads narrower. The width of the forwarder is between 195-225 centimeters depending on the choice of wheels.

All of these features would be anticipated in a larger machine, but Vimek has made them available in a more compact package.

Forestry Journal’s Interview with Joe from Oakleaf Forestry at ElmiaWood 2022

Get in touch for more information on this machine plus many more new and used forestry machines at +44 28 3833 0011 or email us at info@oakleafforestry.com.
